Optimized Daylight Transmission
Our engineered privacy patterns diffuse incoming sunlight across living spaces, achieving up to 88% Visible Light Transmittance (VLT) while completely eliminating line-of-sight.
Commercial-grade obscure, textured, and decorative glass custom-built into fusion-welded vinyl windows and doors.
Amar Engineered Products manufactures precision dual-pane and triple-pane insulated glass units (IGUs) featuring premium privacy glass patterns. Designed for residential, commercial, multi-family, and hospitality applications, our privacy glass solutions balance visual discretion with maximum daylighting.
Our engineered privacy patterns diffuse incoming sunlight across living spaces, achieving up to 88% Visible Light Transmittance (VLT) while completely eliminating line-of-sight.
Every pattern can be safety-tempered to meet international building codes for wet locations, entry doors, low-level glazing, and high-traffic commercial spaces.
Seamlessly pair textured glass with LoĒ³-366 triple-silver low-e coatings, argon gas fill, or laminated sound-dampening glass for superior thermal and acoustic performance.
Select from six distinct architectural textures to meet your specific privacy level, aesthetic target, and light diffusion requirement.

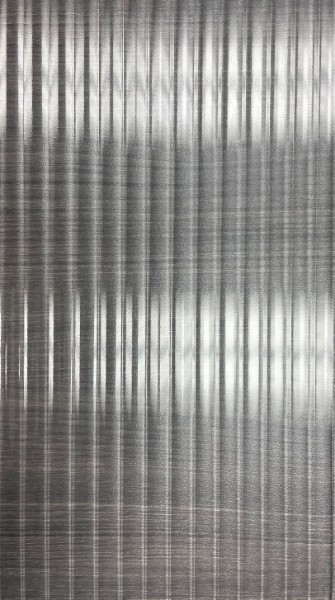

Features parallel vertical ridges that create a crisp, modern geometric distortion. Excellent for contemporary entrance doors, office partitions, and architectural accent windows.

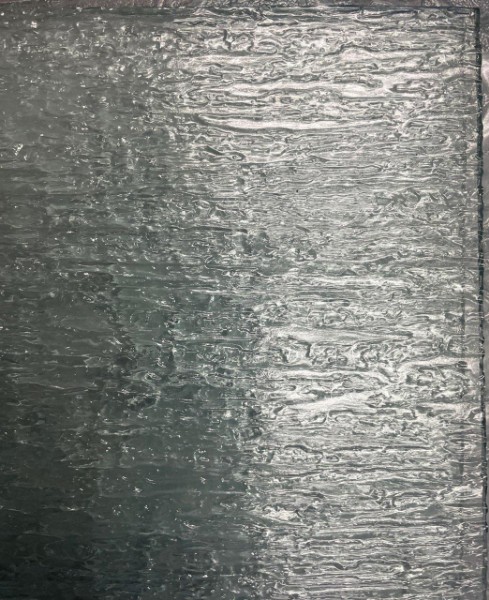

Simulates natural rain droplets running down the pane. Provides high visual obscurity with a soothing organic texture, making it a top choice for master bathrooms and patio doors.

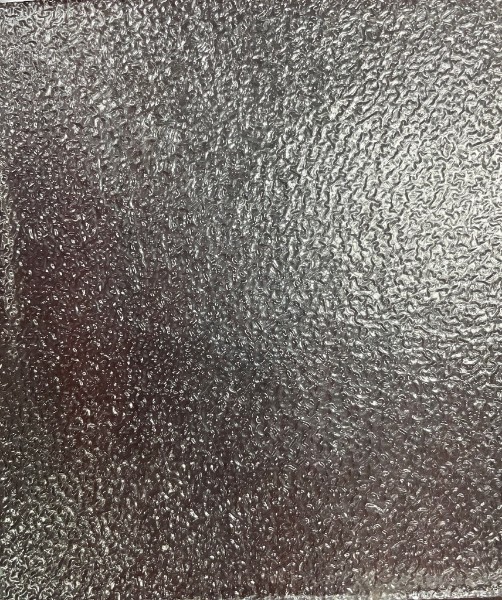

The industry benchmark for uniform light scattering. Fine stippled texture ensures high privacy without dark spots, ideal for ground-floor restrooms and multi-family housing.

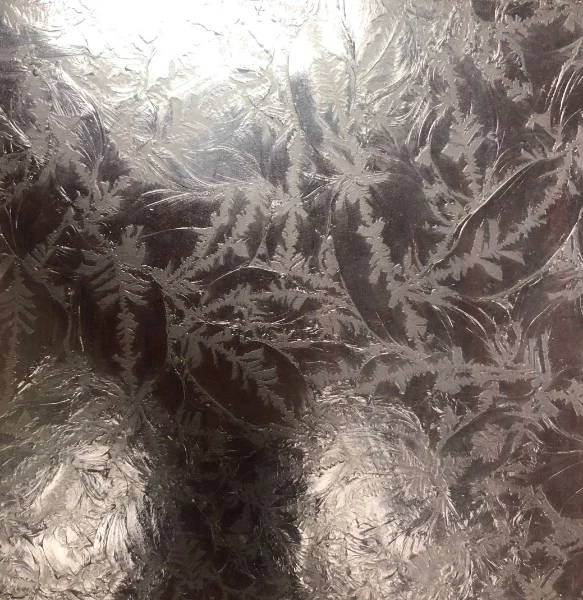

Crafted through a specialized surface contraction process that produces a frost-like, fern pattern. Delivers rich decorative depth for classical French swing doors and sidelights.
Features intricate crystalline structures reminiscent of winter frost on glass. Offers strong visual distortion and an elevated luxury finish for hospitality projects.

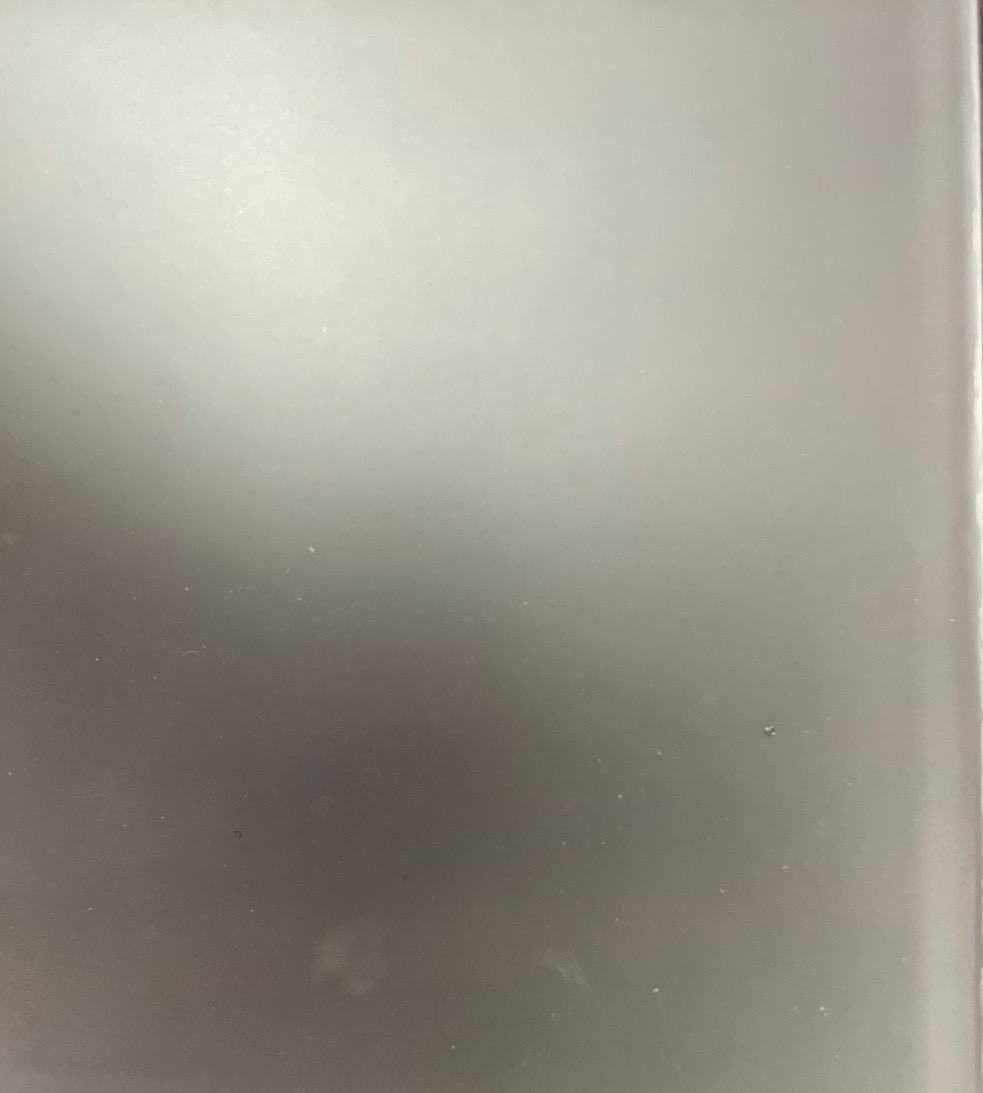

Chemically treated to achieve an ultra-smooth, translucent satin surface. Resists fingerprints and smudges while offering a minimalist, modern privacy boundary.
Compare obscurity levels, light transmission performance, and thermal glazing options to match your project specifications.
| Glass Pattern | Obscurity Rating | Light Transmission (VLT) | Tempering Safety | Recommended Application |
|---|---|---|---|---|
| Reed (Fluted) | 7 / 10 | ~85% | Yes (ANSI Z97.1) | Office partitions, Entry sidelights, Modern vinyl windows |
| Rain Glass | 8 / 10 | ~82% | Yes (ANSI Z97.1) | Master bathrooms, French patio doors, Pool enclosures |
| Standard Obscure | 9 / 10 | ~88% | Yes (ANSI Z97.1) | Commercial restrooms, Ground floor units, Multi-family housing |
| Glue Chip | 8 / 10 | ~80% | Yes (ANSI Z97.1) | Decorative front entries, Transom windows, Heritage retrofits |
| Delta Frost | 9 / 10 | ~78% | Yes (ANSI Z97.1) | Hotel suites, Executive boardrooms, Luxury residences |
| Acid Etched | 9 / 10 | ~84% | Yes (ANSI Z97.1) | Minimalist residential design, Storefronts, Shower enclosures |
By controlling both vinyl extrusion and insulated glass unit (IGU) fabrication under one roof in Southern California, Amar eliminates fitment errors, seal failures, and distributor markups. Every privacy glass window unit is built to exact 1/8-inch tolerances.
Essential technical details for architects, general contractors, and global window importers.
Contact our engineering and sales export department for technical data sheets, physical glass samples, and factory-direct project quotes.
