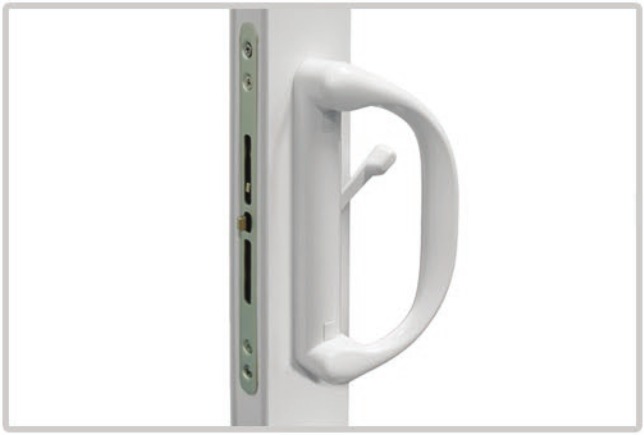

Dual-Point Security Lock
Ergonomically designed handle with integrated dual-point mortise locking hardware provides enhanced forced-entry security and tight sash seal engagement.
Factory-Direct Fusion-Welded Vinyl Sliding Patio Doors engineered for smooth operation, structural integrity, and maximum thermal performance.
The 5000 Patio Door Series is manufactured using multi-chambered 100% virgin vinyl extrusions, fusion-welded frame corners, and internal steel/aluminum reinforcement. Designed for residential remodels, luxury developments, and commercial hospitality projects demanding smooth operation and energy compliance.
Built to operate effortlessly under daily heavy use. High-grade hardware and corrosion-resistant roller systems ensure whisper-quiet sliding action for decades.
Ergonomically designed handle with integrated dual-point mortise locking hardware provides enhanced forced-entry security and tight sash seal engagement.

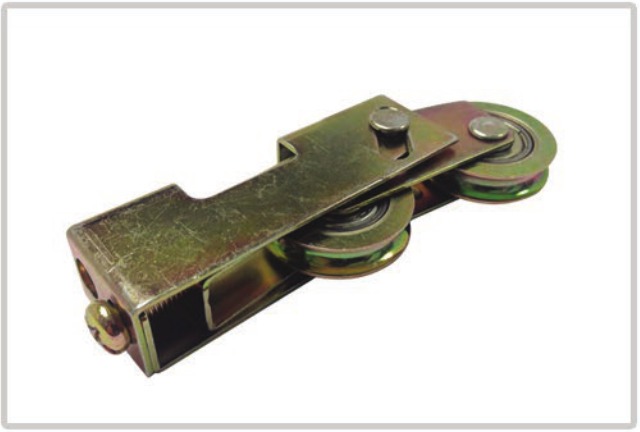

Adjustable tandem stainless steel rollers encased in heavy galvanized steel housings glide along an extruded aluminum track, maintaining smooth operation even on heavy glass loads.
Symmetrical frame sightlines create a balanced architectural aesthetic. Sloped sill tracks actively channel rainwater outward to prevent water intrusion.
Comfortable grip with smooth dual-latch mechanism engineered for safety and ease of use.
Heavy-duty roller housing engineered to prevent track wear, rust, and door sag.
Amar Engineered Products offers solid virgin white vinyl as standard, along with high-grade exterior laminated foil finishes engineered to withstand intense solar UV exposure without peeling or fading.
Comprehensive engineering specifications for architects, builders, and international B2B importers.
| Feature / Property | Specification Detail | B2B / Export Advantage |
|---|---|---|
| Frame Depth | 5-5/8 Inches (143 mm) multi-chamber profile | High structural moment of inertia for large openings |
| Corner Construction | 100% Fusion-welded frame and sash corners | Zero mechanical joint leaks, lifetime frame integrity |
| Reinforcement | Heavy-gauge internal steel & aluminum channels | Prevents panel bow under severe wind pressure |
| Glazing Package | 1" IGU, LoĒ³-366 triple-silver low-e, Argon filled | Blocks 95% UV rays & reduces solar heat gain (SHGC) |
| Warm-Edge Spacer | Duralite® structural foam spacer technology | Reduces condensation & improves thermal edge performance |
| Rollers & Hardware | Tandem stainless steel rollers in galvanized housings | Corrosion-proof, self-aligning smooth track glide |
| Locking System | Ergonomic dual-point mortise safety latch handle | Enhanced security resisting forced entry forced loads |
| Sill Design | Anodized extruded aluminum rail with drainage sloped sill | Rapid rainwater expulsion even during heavy rainfall |
| Compliance | California Title 24, NFRC, AAMA certified standards | Ready for code approval in USA, Canada, & global markets |
Technical answers regarding custom manufacturing, export shipping, and thermal compliance for the 5000 Patio Door Series.
Send your project opening dimensions, panel layout preferences (XO, OX, XOX, XX), and glass specifications to receive direct factory pricing and technical support.
