Thermal & Low-E Glazing
Standard 1" Insulated Glass Units (IGU) featuring LoĒ³-366 triple-silver coating, Duralite® warm-edge spacer, and high-purity argon fill for exceptional thermal performance.
Engineered for Maximum Ventilation, Superior Energy Efficiency & Unmatched Air Tightness

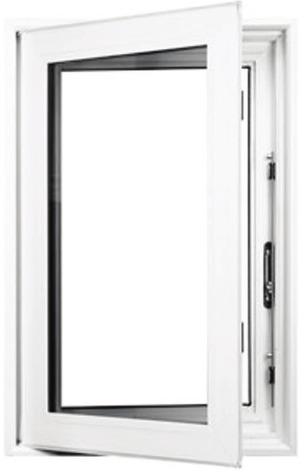

Manufactured using 100% virgin multi-chambered vinyl profiles, our Casement Window Series provides industry-leading structural rigidity, airtight weather-sealing, and maximum exterior daylight transmission.
Designed for multi-family residential developments, hospitality projects, and luxury modern home construction, these casement units swing outward up to a full 90 degrees to catch prevailing breezes while ensuring full compliance with emergency egress codes.
Every component in our casement window platform is optimized to prevent air infiltration, withstand high wind loads, and maintain long-term thermal integrity.
Standard 1" Insulated Glass Units (IGU) featuring LoĒ³-366 triple-silver coating, Duralite® warm-edge spacer, and high-purity argon fill for exceptional thermal performance.
Multiple layers of dual-durometer weather seals along the sash perimeter effectively block wind-driven rain, dust, and sound transmission.
Corrosion-resistant stainless steel operator arms and heavy-duty gearboxes tested for tens of thousands of smooth opening and closing cycles.
Designed for seamless operation, our casement hardware combines aesthetic elegance with robust perimeter security.

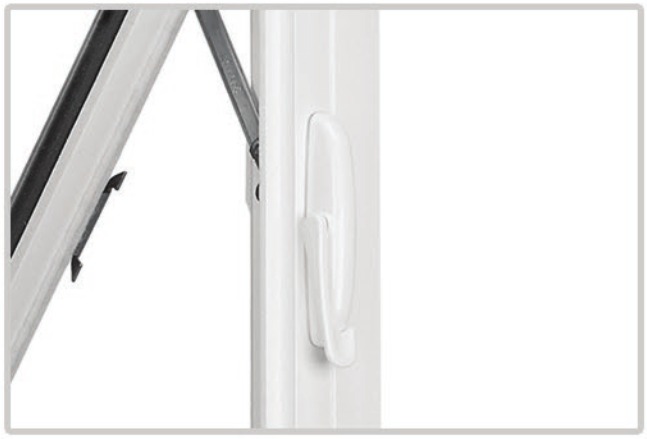

Secures the window sash at multiple points along the frame with a single lever, maximizing structural strength and preventing air leakage in high-wind zones.

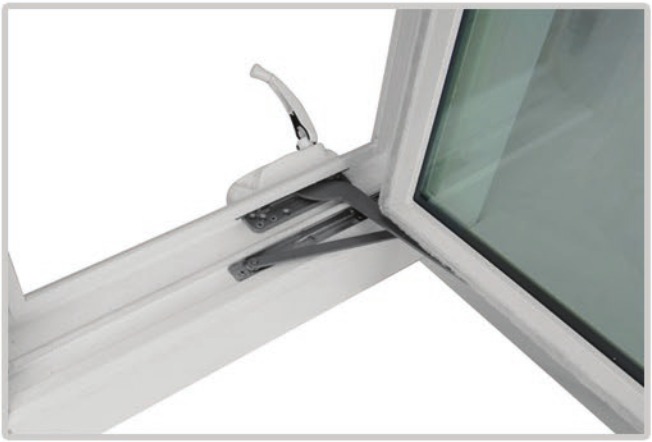

Low-profile operator handle folds flush against the window frame to prevent interference with window blinds or interior window coverings.
Our vinyl casement profiles are available in classic white solid vinyl as well as premium co-extruded architectural exterior laminates. Designed to withstand harsh sun exposure without cracking, peeling, or chalking.
Available Exterior Colors: Laminated Black, Architectural Bronze, and Metallic Silver (Custom color matching available for volume export orders).
Technical parameters for architect specification schedules and international procurement guidelines.
| Feature | Standard Specification | B2B / Custom Upgrade Options |
|---|---|---|
| Frame Depth | 3-1/4 inch (82.5 mm) Multi-Chamber Extruded Vinyl | Nail-fin / Block Frame / Flush Fin Options |
| Corner Construction | Precision Fusion-Welded Frame & Sash | Reinforced Internal Steel Mullions |
| Glazing Options | 1" Dual-Pane IGU with LoĒ³-366 & Argon Fill | Triple-Pane, Laminated Acoustic, Tempered Safety |
| Thermal Spacer | Duralite® High-Performance Warm-Edge Spacer | Stainless Steel / Super Spacer Systems |
| Operating Clearance | Full 90-Degree Swing Clearance | Egress Sizing & Limited-Opening Friction Hinges |
| Hardware Finish | Enamel Coated White / Bronze / Black | 316 Stainless Steel Coastal Environment Grade |
Partner directly with Southern California's leading vinyl extrusion and window manufacturing facility. We export container-load orders with custom palletizing and complete documentation.
