Structural Integrity
Internal steel and aluminum reinforcements provide rigidity across large glass spans, preventing frame warping under high wind pressures.
Engineered with 5-5/8" deep profile, steel reinforcement, multi-point security locks, and LoĒ³-366 thermal glass — direct from our Southern California factory.

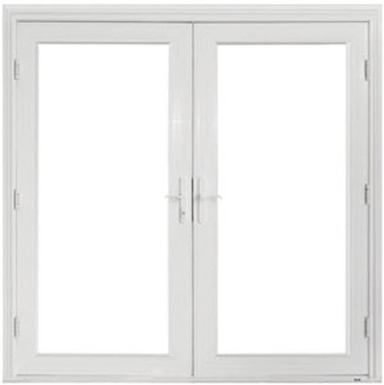

The French Swing Door Series by Amar Engineered Products merges classic architectural style with modern extrusion technology. Manufactured using 100% virgin PVC, steel reinforcement, and precision fusion welding, this platform offers superior thermal resistance, structural rigidity, and acoustic isolation for residential, hotel, and multi-family developments.
Internal steel and aluminum reinforcements provide rigidity across large glass spans, preventing frame warping under high wind pressures.
100% heat-welded frame and sash corners form a seamless, leak-proof structural shell that eliminates water and air infiltration.
Deep multi-chambered frame profile designed to house thick 1-inch double or optional triple-pane insulated glass units effortlessly.
Dual-durometer perimeter weatherstripping combined with multi-chamber walls blocks urban sound transmission effectively.
Built to exact architectural schedules with custom dimensions down to 1/8-inch increments. Verified for California Title 24 compliance and international import requirements.
| Specification Metric | Factory Standard | Performance & Commercial Benefit |
|---|---|---|
| Frame Profile Depth | 5-5/8 Inches (143 mm) | Engineered to support heavy architectural glazing and deep structural sills. |
| Vinyl Material | 100% Virgin PVC Profile | Zero regrind material; highly resistant to UV discolouration, cracking, and chalking. |
| Internal Reinforcement | Galvanized Steel & Aluminum Inserts | Reinforced stiles maintain plumb square operation under heavy commercial usage. |
| Corner Construction | Precision CNC Fusion-Welded | Permanent structural bond with no mechanical corner screws or gaskets to loosen. |
| Standard Glazing Unit | 1" Insulated Glass Unit (IGU) | LoĒ³-366 Triple-Silver Low-E with Argon Gas Fill & Duralite Warm-Edge Spacer. |
| Optional Glass Builds | Triple Pane & DuraPane Impact Glass | Enhanced structural impact resistance, hurricane protection, and severe thermal control. |
| Locking Mechanism | Multi-Point Dual Locking System | Engages frame at multiple points for maximum anti-burglary security and air seal tightness. |
| Operation Configurations | In-Swing, Out-Swing, Sidelites (X, XX, XOX) | Available with left/right active panels, fixed or operable sidelites, and even sightlines. |
Every door assembly includes architectural-grade hardware engineered for high-frequency operation and long-term security in hospitality and multi-family applications.

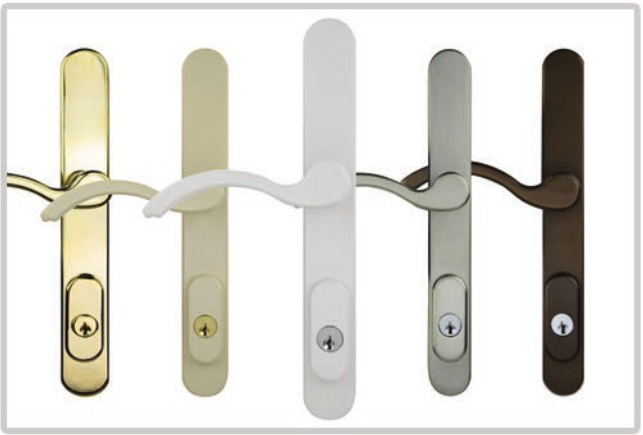

Premium lever handle paired with a multi-point locking drive system that pulls sashes tight against dual-durometer weatherstripping.

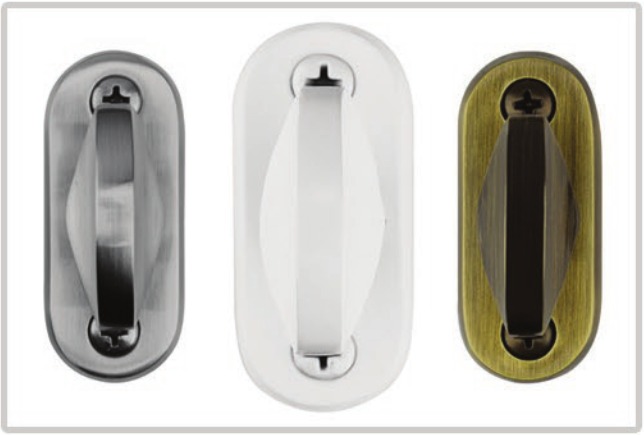

Heavy-duty top and bottom latches for fixed or operable sidelites, allowing seamless wide-opening access when extra clearance is needed.

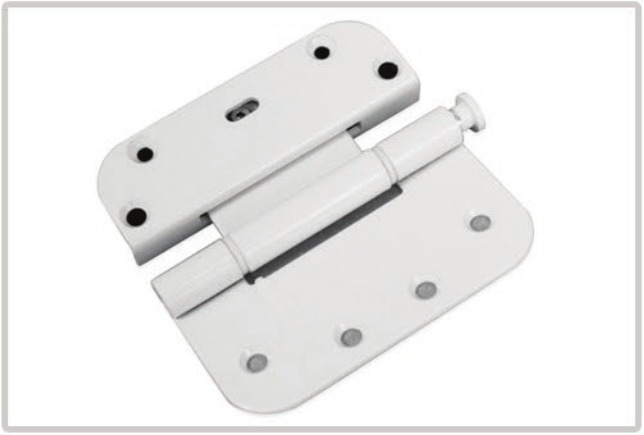

Tamper-resistant security hinges engineered to support heavy insulated glass loads without sagging, offering precise 3D door alignment.
Because Amar controls profile extrusion, steel reinforcement placement, automated glass cutting, and final assembly under one roof, we eliminate supplier delays and dimensional discrepancies across your entire schedule.
Technical details and order guidance for importers, commercial contractors, and project managers.
Get complete architectural CAD cross-sections, testing data, and engineering specifications for the French Swing Door Series.
