Engineering Excellence

Value-engineered vinyl windows with uncompromised strength

The 1733 Window Series combines structural rigidity with economical profile geometry. Designed for multi-family developments, housing projects, and commercial retrofits, this platform features bevelled multi-chamber extrusions, steel-reinforced sashes, and high-performance energy efficiency—manufactured factory-direct in Southern California.

Reinforced Sashes

Internal steel and aluminum reinforcements provide structural stability against wind loads and frame distortion across large operational openings.

Autolock Hardware

Heavy-duty positive cam autolocks provide seamless operational security and audible confirmation upon closing moving sashes.

LoĒ³-366 & Argon

3/4" dual-pane insulating glass with Duralite warm-edge spacer and argon gas fill dramatically cuts HVAC thermal loads.

Dual Frame Profiles

Available in 3-1/4" retrofit frame depth for quick replacement or 2-3/4" nail-on frame depth with standard or wide fins for new construction.

Component Highlights

Precision hardware and weatherproofing details

Every 1733 Series unit is built using premium hardware and high-density weather seals to deliver smooth operational performance over decades.

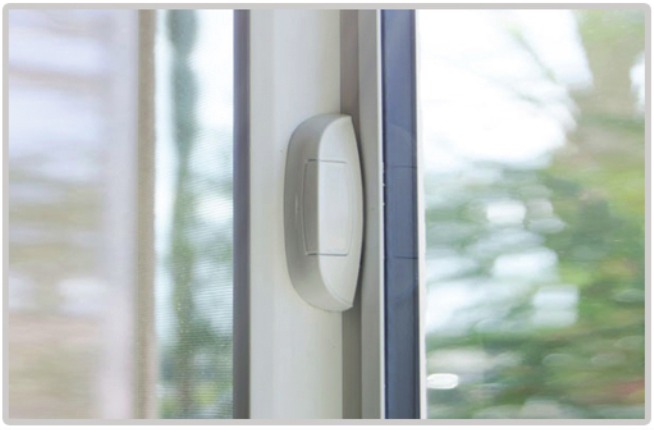

Autolock mechanism on 1733 Vinyl Window Series

Heavy-Duty Autolock

Integrated automatic locking latch ensures high security and effortless operation every time the sash is pushed closed.

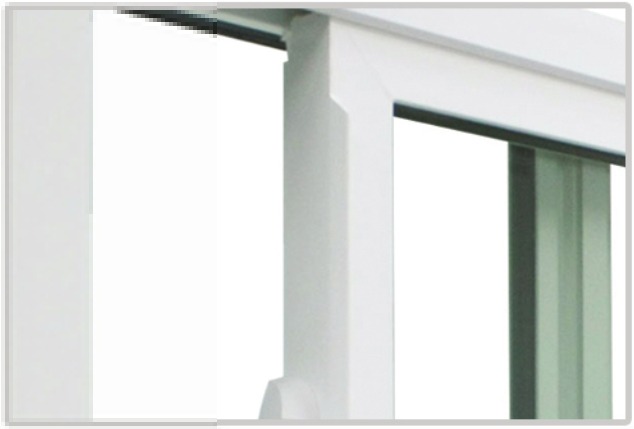

Integral Pull Rail

Full-length continuous pull rail extruded directly into the sash profile eliminates add-on handles and prevents hardware failure.

All metal window roller mechanism on 1733 series sliding window

All-Metal Rollers

Precision-engineered metal wheel assemblies on sliding models ensure whisper-quiet, smooth glide performance without sagging.

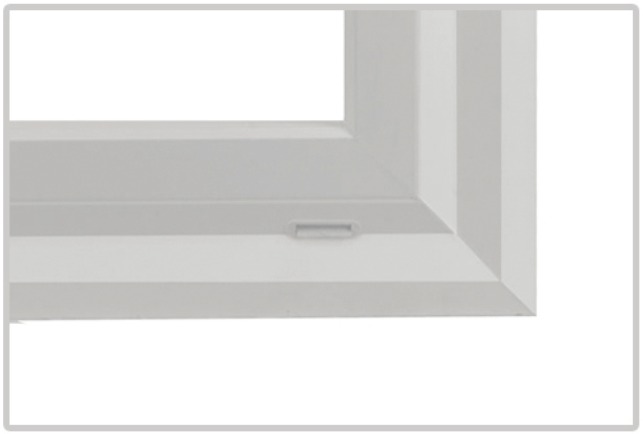

Weep hole drainage system detail on vinyl window frame

Water Drainage Weep System

Engineered baffle weep holes direct heavy rainfall outward quickly while preventing wind-driven backdrafts and water entry.

Product Specs & Finishes

Standard specifications for 1733 Window Series

Extruded from 100% virgin vinyl with zero recycled fillers, the 1733 Series provides superior color stability and structural integrity against UV exposure and weather cycles.

Multi-Chamber Extrusions: Bevelled outer frame wall enhances thermal break and architectural aesthetics.
Frame Depth Options: 3-1/4" Retrofit flush-fin frame or 2-3/4" Nail-on frame for seamless installation.
Nailing Fin Sizes: Standard 1-3/4" fin or optional wider 2-1/2" fin available upon order request.
Insulated Glass Build: 3/4" dual-pane unit with LoĒ³-366 coating, argon fill, and Duralite spacer technology.
Exterior Laminated Finishes: White solid vinyl base with option for high-durability Black, Bronze, or Silver exterior foil.

Exterior color options: Laminated Black, Bronze, and Silver for vinyl window frames

Technical Matrix

1733 Window Series Specification Table

Refer to the technical data below for project take-offs, building code approvals, and procurement specifications.

Technical specification summary for 1733 Vinyl Window Series. Custom sizes manufactured in 1/8" increments.
Specification Metric	Standard Provision	Optional Upgrades
Profile Material	100% Virgin Extruded Vinyl (PVC)	Laminated Exterior Foil (Black, Bronze, Silver)
Frame Depths	3-1/4" Retrofit / 2-3/4" Nail-on	Wider 2-1/2" Nailing Fin (1-3/4" Standard)
Sash Reinforcements	Galvanized Steel & Aluminum Inserts	Heavy-Duty Commercial Gauge Inserts
Glazing Assembly	3/4" Insulating Dual-Pane Glass	LoĒ³-366, Obscure Privacy, Laminated Acoustic
Gas Fill & Spacer	Argon Gas Fill + Duralite Warm-Edge Spacer	Triple-Silver Low-E Glass Packages
Operational Hardware	Positive Autolock + All-Metal Wheel Rollers	Keyed Night Locks & Secondary Limiters
Weatherstripping	Full Perimeter Dual-Durometer Seals	High-Density Wool Pile Seals

B2B Buyer FAQ

Frequently Asked Questions on 1733 Series

Essential details for general contractors, property developers, and international importers.

Yes. The 1733 Window Series is designed specifically for apartment retrofits, housing authority projects, and commercial developments. Its 3-1/4" retrofit flush fin frame makes installation over existing window frames fast and weather-tight without disturbing interior trim.

Structural steel and aluminum inserts are placed inside the vinyl sash chambers. This prevents vinyl bowing, enhances wind load resistance, ensures smooth sliding operation under high thermal variation, and securely anchors the locking hardware.

While the interior remains clean white virgin vinyl, we offer high-grade exterior architectural laminates in Black, Dark Bronze, and Anodized Silver. These laminates resist peeling, chalking, and heat absorption even in intense sunlight.

Every order is produced to exact 1/8-inch tolerances. Units are individual-barcoded with opening numbers, fitted with corner guards, heavy-duty shrink wrapped, and palletized into export crates to guarantee damage-free container transport and seamless job site distribution.
