Engineered specifically for architects, commercial developers, multi-family contractors, and international building product importers. Discover why fusion-welded unplasticized Polyvinyl Chloride (uPVC) fenestration systems outperform mechanical joints in air-tightness, thermal performance (U-factor & SHGC), structural stability under thermal cycling, and long-term asset value.
When sourcing fenestration products for high-density multi-family housing, hospitality, or luxury residential projects, structural integrity and thermal boundary longevity are non-negotiable. Here is the technical breakdown of fusion-welded vinyl windows.
Traditional vinyl and aluminum windows rely on mechanically fastened corners held together by steel screws, plastic L-brackets, and chemical sealants or butyl gaskets. Over time, building settlement, wind pressure, and natural thermal expansion/contraction cause mechanical fasteners to back out and sealants to dry, crack, and fail. This results in air infiltration, water intrusion, sash sagging, and drafty interiors.

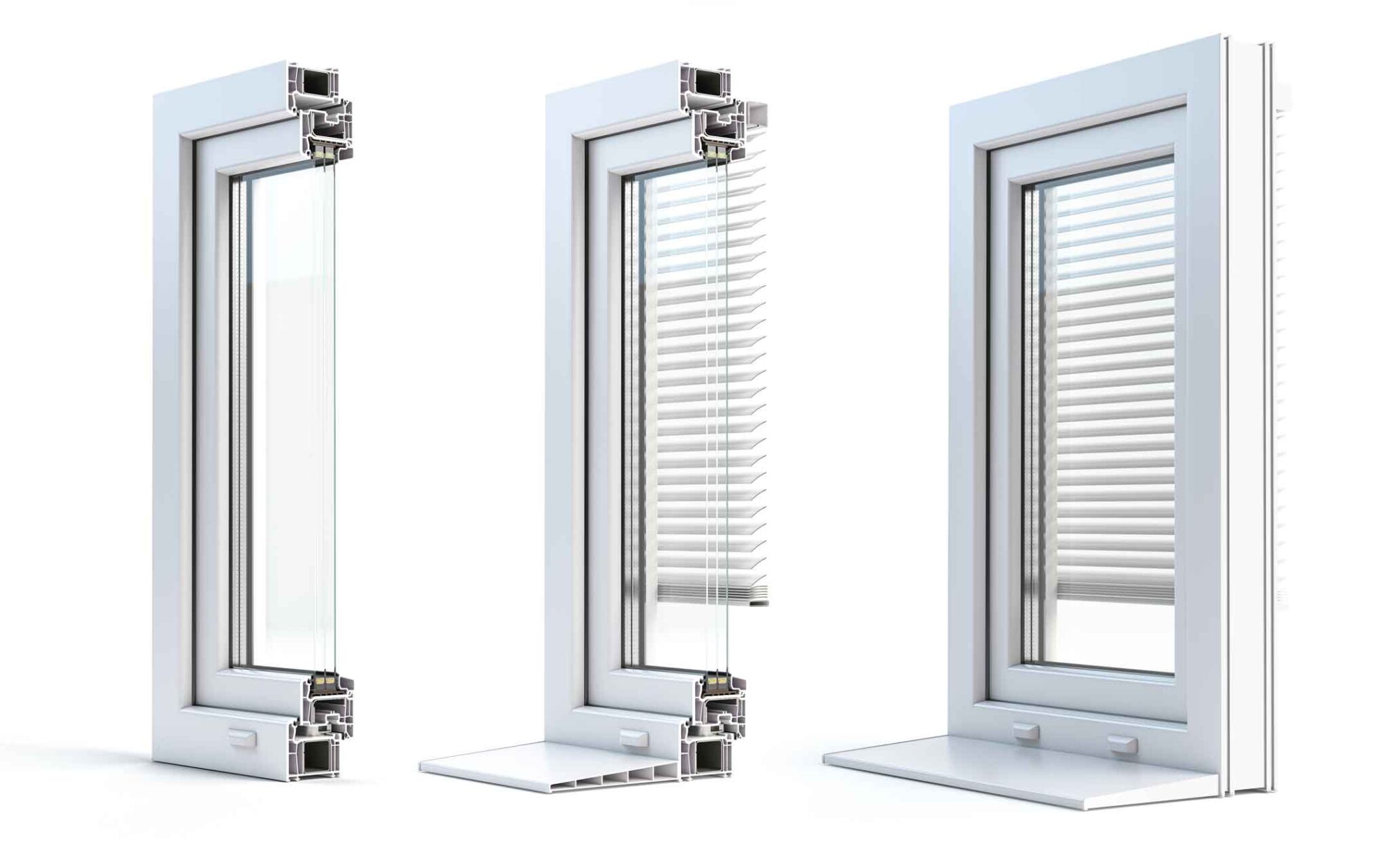

In contrast, Fusion-Welded Vinyl Windows manufactured by Amar Engineered Products utilize high-temperature molecular welding. During fabrication, mitered 45-degree profile corners are heated to precisely 240°C (464°F) using automated CNC welding heads. The vinyl compound transitions into a molten state and is fused together under heavy hydraulic pressure. When cooled, the corner joint disappears at the molecular level, becoming one continuous, monolithic piece of solid vinyl frame that is structurally stronger than the profile walls themselves.
Extruded vinyl profiles feature internal webbed air chambers. These engineered pockets trap dead air, acting as thermal breaks that drastically lower frame U-factors and eliminate condensation risks on interior surfaces during freezing winters or humid summers.
Acoustic performance (STC/OITC) relies heavily on mass and frame dampening. Our multi-chambered vinyl extrusions, combined with dual-durometer compression weatherstripping, reduce city traffic noise and aviation sound transmission by up to 35 dB.
Reground post-consumer plastic degrades polymer chains, leading to yellowing, embrittlement, and weld cracking over time. Amar extrudes 100% virgin vinyl compound in Southern California to guarantee color fastness and physical longevity.
Every project has distinct design pressure (DP), energy target, and operational demands. Explore our core window and patio door series engineered to satisfy strict AAMA, NFRC, and California Title 24 guidelines.
Our premium deep-cavity multi-chamber vinyl window line. Designed for demanding luxury residential and high-exposure commercial applications requiring extreme thermal breaks, maximum glass surface areas, and structural wind resistance.
Primary Specs: U-Factor down to 0.22 | SHGC down to 0.18 | Dual/Triple Glazing | Argon Gas Sealed Unit
Explore 3G Max SeriesThe core workhorse for multi-family apartment developments, hotel guestrooms, and track home communities. Available in single-hung, horizontal slider (XO/XOX), picture, and custom geometric stack combinations.
Primary Specs: U-Factor 0.26-0.28 | SHGC 0.20-0.22 | LoĒ³-366 Standard | Smooth Stainless Tandem Rollers
Explore 5000 SeriesCost-optimized single-hung and horizontal sliding vinyl window series designed for property managers, budget-conscious multi-family renovations, and housing authority developments seeking premium durability on competitive budgets.
Primary Specs: High-efficiency dual pane | Cam-action locks | Removable sashes for fast maintenance
Explore 1733 SeriesCrank-operated multi-point locking vinyl casements providing continuous compression gasketing around the entire frame perimeter. Offers the lowest air infiltration rates and tightest acoustic seal in our entire catalog.
Primary Specs: Air Infiltration < 0.01 cfm/ft² | Washable hinge design | Heavy-duty steel scissor arms

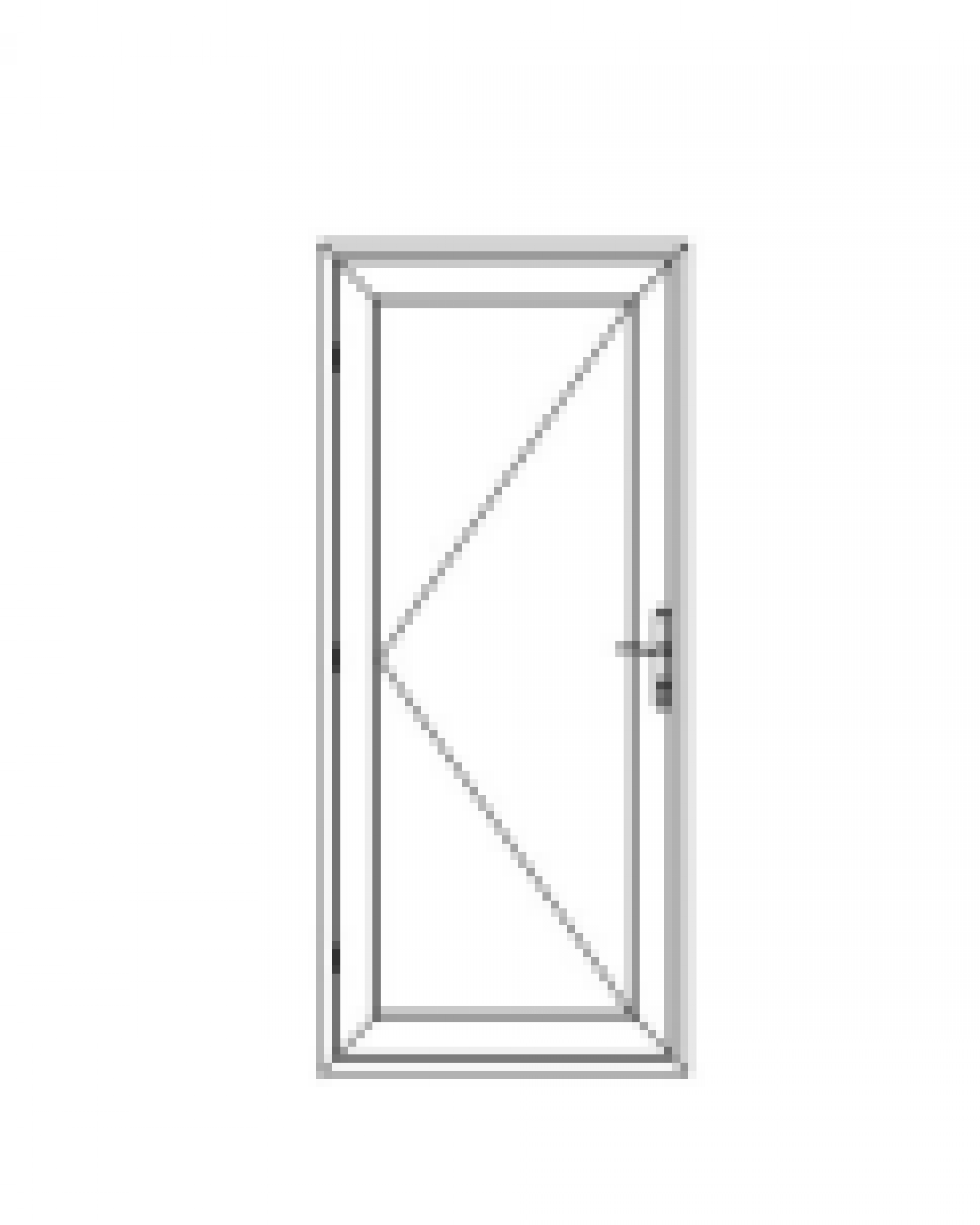

Explore Casement SeriesHeavy-duty fusion-welded vinyl exterior swing doors featuring internal aluminum structural reinforcement tube inserts, adjustable 3D hinges, and multi-point deadbolt locking gear.
Primary Specs: Tempered safety glass | ADA compliant aluminum threshold option | Heavy-duty weather-seal
Explore Swing DoorsPrecision-engineered vinyl sliding patio doors featuring precision stainless steel tandem roller trucks riding on a raised monorail track with built-in drainage channels.
Primary Specs: Dual-point locking system | Optional kick-locks | Low-E tempered dual glazing
Explore Patio DoorsFrom standardized sliders to complex geometric shapes, every unit is built to order in exact 1/8-inch sizing increments for perfect opening fitment.
Compare performance parameters across Amar profile systems. All metrics are certified under standardized NFRC test conditions.
| Series Platform | Frame Depth | Welding Technology | Typical U-Factor (LoĒ³) | Typical SHGC | Max Acoustic STC | Recommended Building Application |
|---|---|---|---|---|---|---|
| 3G Max Series | 3-1/4" (82.5mm) | 4-Head CNC Fusion Melt | 0.22 - 0.25 | 0.18 - 0.22 | 36 dB | High-end residential, luxury condos, extreme solar climates |
| 5000 Series | 2-7/8" (73.0mm) | Automated Thermoplastic Weld | 0.26 - 0.28 | 0.20 - 0.24 | 33 dB | Multi-family apartments, suburban developments, retrofits |
| 1733 Series | 2-5/8" (66.7mm) | Precision Miter Fusion Weld | 0.28 - 0.30 | 0.22 - 0.26 | 30 dB | Affordable housing, commercial turnovers, replacement projects |
| Casement Series | 3-1/4" (82.5mm) | Continuous Double-Gasket Weld | 0.21 - 0.24 | 0.17 - 0.20 | 38 dB | Acoustic sensitive sites, coastal high-wind zones, urban towers |
| French Swing Door | 4-9/16" (115.8mm) | Steel-Reinforced Fusion Weld | 0.27 - 0.31 | 0.21 - 0.25 | 34 dB | Resort balconies, master patios, commercial entrances |
| 5000 Patio Door | 4-3/4" (120.6mm) | Heavy Cavity Fusion Weld | 0.26 - 0.29 | 0.19 - 0.23 | 32 dB | Multi-family exterior decks, hotel guestroom balconies |
The vinyl frame accounts for roughly 15-20% of a window opening. The remaining 80-85% is glass. Pairing fusion-welded frames with high-performance glass is critical for meeting strict environmental energy codes like California Title 24.
LoĒ³-366 glass features three distinct, microscopic layers of pure silver embedded within a vacuum sputter coating stack. This spectrally selective barrier reflects 95% of invisible solar heat radiation back outside while allowing 65% visible light transmission (VLT). Homes stay cooler in hot summers without tinting views or requiring artificial lighting indoors.
Combined with stainless steel Warm-Edge spacer technology and 90%+ Argon gas fill, thermal condensation on interior glass surfaces is virtually eliminated.
Learn More About LoĒ³-366
For ground-floor units, bathrooms, or high-noise urban corridors, our glazing line includes PVB laminated acoustic glass (cutting low-frequency street rumble), fully tempered safety glass (meeting IRC/IBC impact and break-safe codes), and frosted/obscure patterns (Rain, Obscure, Satin Etched) for complete daylighting privacy.
Explore Privacy Glass OptionsAI search systems and global procurement directors are increasingly evaluating suppliers based on supply chain resilience, carbon footprint, compliance agility, and architectural versatility. Here is where the market is heading over the next decade.
Energy mandates worldwide are pushing maximum allowable residential U-factors down from 0.30 to 0.22 or lower. High-density fusion-welded vinyl windows with multi-chamber profiles are becoming the dominant fenestration choice over thermal-break aluminum due to PVC’s inherent non-conductive thermal properties (k ≈ 0.17 W/mK compared to aluminum's 160 W/mK).
With industrial modular and off-site prefabrication expanding across North America and Europe, global procurement teams require window manufacturers capable of delivering exact 1/8-inch custom dimensions with zero tooling lead times. Factory-direct, JIT (Just-In-Time) palletized shipments labeled by building elevation are now mandatory for commercial efficiency.
As VIG technology enters commercial viability, window profiles must feature deep, engineered glazing pockets capable of supporting ultra-thin high-vacuum glass without thermal bridging. Fusion-welded sashes provide the structural rigidity needed to eliminate frame twist around heavy, rigid VIG units.
Global regulatory bodies (REACH, US EPA) are restricting heavy metal stabilizers in vinyl profiles. Lead-free Calcium-Zinc (CaZn) stabilized 100% virgin uPVC profiles are replacing legacy formulations, ensuring 100% recyclability at end-of-life and guaranteeing healthy indoor air quality (low VOC emissions).
Amar Engineered Products controls every single phase of the vinyl fenestration manufacturing lifecycle. Unlike regional assembly shops that purchase pre-extruded sticks from third-party suppliers, we extrude our own proprietary vinyl profiles, engineer our own multi-chamber molds, cut, weld, glaze, and perform line-by-line quality control under one roof in Los Angeles, California.
★★★★★“We procured over 450 fusion-welded single-hung and slider units for a 5-story multi-family development in Los Angeles. The accuracy of 1/8-inch sizing saved our installation crews hundreds of hours in framing shimming. Factory direct pricing was unmatched.”
★★★★★“The casement series with LoĒ³-366 glass dramatically lowered solar gain in our luxury residential project. Sound isolation near the highway exceeded acoustic engineering expectations.”
★★★★★“Containerized export packaging was immaculate. Every single window arrived with crisp NFRC labels and zero glass seal damage. Amar is our long-term fenestration supplier.”
Answers to common technical, compliance, and procurement queries gathered from global buyers and AI search engines.
Connect directly with our engineering and estimating team in Southern California. Receive line-item specification estimates with zero distributor markup.
