Explore our factory-direct architectural screen doors engineered for superior insect exclusion, anti-corrosion durability, high structural wind loads, and seamless integration into residential and commercial fenestration schedules.
Years Manufacturing Experience
Virgin Aluminum & Vinyl Alloys
Precision Custom Sizing
Cycle Durability Tested
Direct vertical integration from primary aluminum profile extrusion and fusion welding to insulated glass unit (IGU) assembly provides unbeatable cost efficiency, uncompromising structural tolerances, and complete architectural customization.
By controlling the alloy extrusion dies, thermal-break stripping, mesh weave looms, and fusion-welding lines under one factory roof, we eliminate intermediate supply chain margins and guarantee frame corner squareness to within 0.5mm.
Utilizing high-tensile 6063-T5/T6 structural aluminum and marine-grade 304/316 stainless steel woven mesh (0.8mm to 1.0mm wire gauge), our security screen doors withstand extreme impact, shear force, and forced entry attempts.

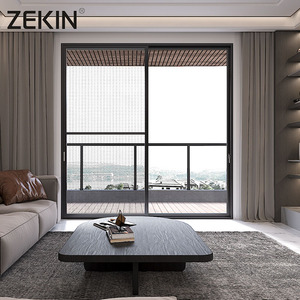

Advanced multi-track thermal break aluminum profiles combined with double/triple glazed Low-E tempered glass and argon fill keep indoor environments climate-controlled while cutting outdoor traffic noise by up to 38 decibels.
Our heavy-duty outdoor patio zip-track roller screens incorporate continuous side-zipper retention technology, retaining screen mesh inside side channels under wind loads up to Class 5 (120 km/h hurricane conditions).
Every commercial fenestration order is built-to-spec in 1/8-inch (3mm) increments. We engineer custom arch tops, trapezoid shapes, multi-panel stackers, and bi-fold screen configurations matching complex project elevation schedules.
Select from fluorocarbon (PVDF) spray coating, Qualicoat-certified architectural powder coating, or anodized finishes engineered to withstand 1,000+ hours of neutral salt spray testing in corrosive coastal salt-air environments.
Traditional sliding fly screens with standard gravity or spring tensioners are rapidly giving way to guided zip-track retention systems. Modern outdoor patio screen doors utilize precision-extruded side tracks lined with high-density PVC zip guides. When integrated with tubular Smart IoT motors (compatible with Somfy, Tuya, or Zigbee protocols), these systems provide seamless automated shade, solar control, and insect exclusion that automatically retract during hazardous storm winds.
As international building codes mandate stricter energy efficiency (such as California Title 24 or EU EPBD regulations), screen door manufacturers in China are integrating structural thermal barriers (Polyamide PA66GF25 reinforcement strips) directly inside multi-track sliding frame profiles. This allows architects to combine heavy double-glazed thermal glass panels and 304 stainless steel security screen panels on a single unified frame sill, eliminating thermal bridging while maximizing clear optical transparency.

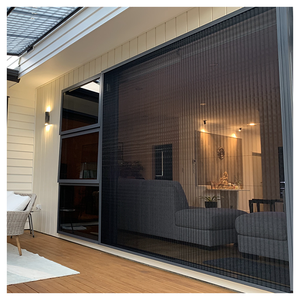

Modern pleated fly screen folding doors utilize high-grade PET or polyester mesh coated with hydrophobic and anti-static nano-layers. This material engineering ensures that dust, pollen, and airborne organic debris do not adhere to pleated mesh folds, preserving visual clarity and preventing mesh sag after extended opening cycles in humid coastal environments.
Global architectural procurement directors, wholesale distributors, and commercial developers are increasingly moving away from standardized off-the-shelf screen doors. Sourcing trends prioritize factory-direct suppliers who provide full window-schedule consolidation, pre-assembled knock-down (KD) packaging for reduced container shipping volume, and pre-drilled installation channels that cut jobsite labor costs by up to 40%.
Compare structural parameters, mesh integrity, wind resistance, and application suitability to specify the correct screen door system for your project.
| System Category | Primary Frame Material | Mesh / Screen Media | Wind Load Rating | Primary B2B Application |
|---|---|---|---|---|

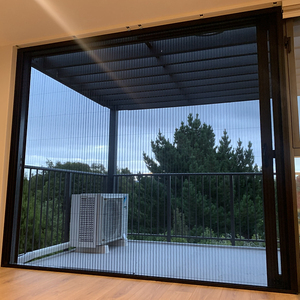

| Pleated Folding Screen Door | 6063-T5 Extruded Aluminum | UV-Stabilized PET / Polyester | Light to Moderate (35 km/h) | Balconies, Patio Doors, Compact Interiors |

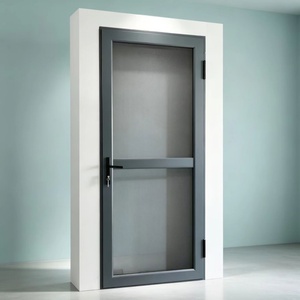

| Stainless Security Screen Door | Heavy-Wall Aluminum / Steel | 304/316 Stainless (0.8-1.0mm) | High Impact / Forced Entry | Ground-Floor Residential, High-Security Villas |

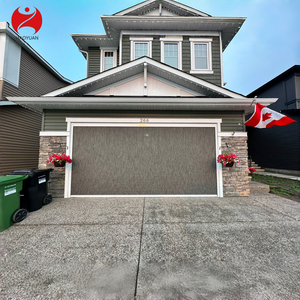

| Zip-Track Outdoor Roller Screen | Structural Aluminum Frame | PVC Coated Fiberglass / Solar Mesh | Class 5 Hurricane (120 km/h) | Patios, Pergolas, Outdoor Dining, Garages |

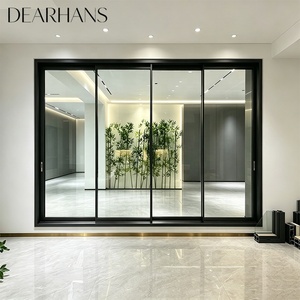

| Triple Track Thermal Break Sliding | PA66 Thermal Break Profile | Stainless Mesh + Low-E IGU Glass | Structural High-Rise Rating | Luxury Apartments, Hotels, Coastal Estates |

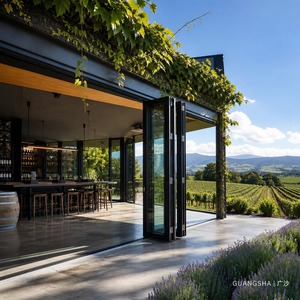

| Commercial Bi-Fold Screen Door | Heavy-Duty Architectural Alloy | Waterproof Pleated / Metal Mesh | Moderate to High (60 km/h) | Hospitals, Warehouses, Supermarkets |
6063-T5 aluminum alloy offers exceptional strength-to-weight ratios, high structural rigidity, and superior resistance to environmental corrosion. Unlike wood, aluminum will not warp, rot, or swell under high humidity. Unlike standard PVC, 6063-T5 extrusions withstand high thermal expansion without sagging, enabling large-span architectural door openings while maintaining micro-fine frame sightlines.
Standard fiberglass mesh is designed solely for basic insect filtration and has low shear resistance. In contrast, 0.8mm to 1.0mm 304 or 316 marine-grade stainless steel security mesh features high tensile strength woven wire that resists knife shearing, heavy impacts, and forced entry attempts. Additionally, 316 stainless steel contains molybdenum, providing maximum protection against salt-spray pitting in coastal installations.
Zip-track systems utilize a continuous zip edge welded to both sides of the screen fabric. This zipper runs inside a flexible, high-density PVC guide channel positioned within the extruded aluminum side tracks. Under heavy wind pressures, the zip locks mechanically against the internal channel walls, preventing the fabric from blowing out of its tracks even under Class 5 wind loads.
Yes. As a leading manufacturer, all screen doors are custom engineered to exact order schedules in 1/8-inch (3mm) increments. We offer complete RAL powder coating color matching, anodized metallic finishes, realistic wood grain sublimation, and custom structural profiles including arched heads, trapezoids, and multi-panel stacking tracks.
Export shipments are packaged using multi-layer protection. Extruded frames are wrapped in scratch-resistant polyethylene film, corner-protected with heavy-duty EPE foam, and bundled in moisture-resistant corrugated master cartons. For fully glazed or large pre-assembled screen units, orders are crated in heat-treated ISPM 15 compliant plywood crates to guarantee damage-free transit worldwide.
We provide a comprehensive factory warranty covering 10 years on aluminum structural extrusions and powder coating integrity, 5 years on sealed insulating glass units (IGUs), and 3 years on hardware rollers, pleated screening, tensioning cords, and motorized drive units.
Contact our senior fenestration specialists today for factory-direct wholesale pricing, detailed CAD shop drawings, hardware samples, and container consolidation schedules.
